Rohde Top Loader TE200S

Item: TE200S

Write the first review

available Add to basket to PRE ORDER

Choose Furniture Set:
Choose Phase:
from £5,500.00 inc VAT

updown
add to wish list login to save

Share

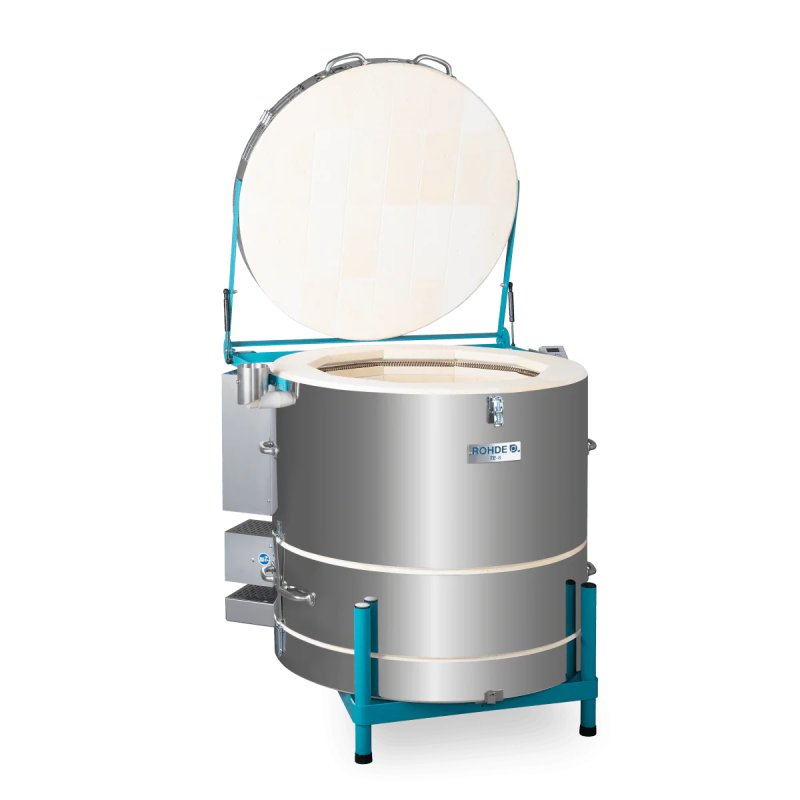

Rohde Top Loader TE200S
Facebook Twitter Email Pinterest Telegram

Product Description

The TE-S series of top loading kilns are high quality kilns for every day applications in professional ceramic workshops. Rohde have constantly been improving this kilns over the past 27 years. It combines state-of-the-art technology with high durability. Many ceramic workshops have already approved of the flexible extension of many kiln models for extending their firing capabilities.

Standard Equipment

  • The bricks in and around the lid have been bevelled, this prevents material from the lid falling into your work
  • Lifting the lid is very easy thanks to the aid of mounted spring dampers
  • Lids can be adjusted and locked
  • An air exhaust opening can be found on the top
  • Thermocouples are fitted in a protected position
  • Castors are fitted on the rear legs for ease of movement
  • The reversible stand allows you to adjust the kiln to a comfortable working height
  • Air supply from the base increases the life of the elements
  • Models can be disassembled for ease of movement or installation into difficult areas
  • Elements are carefully set into fire bricks and securely fastened
  • Mortar free top loading lids - tried and tested for over 20 years
  • Unique 114mm wall thickness for all models
Specifications

Application Temp °C - 1290
Top Temp °C - 1320
Capacity - 200L
Internal Dimensions (mm) - 610 x 610 x 680
External Dimensions (mm) - 930 x 990 x 1020
Weight: 166kg
Power: 13.2kW
Supply: 230v - A

This kiln is available as single phase or 3-phase. In the UK the majority of homes have a single phase supply (the standard three wires: live, neutral and earth). 3-phase supplies (five wires) are usually only found in industrial or commercial settings, so please check which connection type you require before ordering. In either case this kiln will need to be connected by a qualified electrician.

  • Single Phase Kiln Specifications: 13.2kW, 58 Amp, 230v, supplied with cable and plug (see image below)
  • 3 Phase Kiln Specifications: 13.2kW, 19 Amp, 400v, 3/N/PE, supplied with cable and 16 Amp 5-pin CEE plug

Optional Shelf kit includes:

  • 4 x Ø540mm Kiln Shelves
  • 9 x 25mm props
  • 9 x 50mm props
  • 9 x 75mm props
  • 9 x 100mm props
Delivery Details & Guarantee
  • Delivery times subject to availability
  • Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
  • Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
  • Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.

Our Palletised Delivery Guidance shows you what to expect upon delivery.

On arrival see how your Rohde Toploader is packed.

Guarantee

  • 3 Year Manufacturers Warranty (not including elements).
Controller

Programmer ST 310

  • 32 programs
  • 2 controlled heating ramps / 1 controlled cooling ramp + soak per segment
  • Soak periods up to 99 hours 59 mins
  • Ramp rates from 1 to 999°/ hour + FULL
  • USB interface and Wifi module to evaluate and save data with ROHDEgraph and ROHDE myKiln App
  • Ideal for glass or ceramics use
  • Programs can be altered while firing
  • Program pause and advance facilities
  • Keyboard lockable
  • Delayed start facility – up to 99 hours 59 mins
  • Power failure recovery
  • Energy used display
  • Setpoint display
  • Alarm buzzer
  • °C/°F operation
  • USB interface for data logging

Ext. dimensions (W x D x H)80 x 165 mm

Product Specification
Weight
1000000g
Home Delivery

UK mainland delivery from £96.00

check delivery cost
