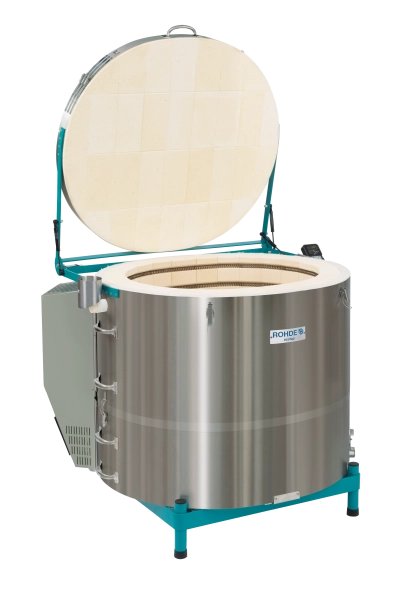

Rohde Ecotop 250S

Item: ECOTOP250S

Write the first review

Description
Specifications
Controllers & App
Delivery Details & Guarantee
Why Buy From Bath Potters?

Description

Efficient, safe and economical.

The Ecotop 250 S Toploader has a volume of 250 litres and is a kiln from the Ecotop series suitable for temperatures to 1320°C.

The future-oriented models from the Ecotop series are among the most recent developed kiln range of ROHDE. The Ecotop is currently one of the most economical kilns on the market and features a new and unique insulation concept that allows for very high energy efficiency.

The 2-layer insulation structure featuring a high-quality microporous 35 mm back insulation can be safely fired to stoneware temperatures.

Special features of the Ecotop series:

250 l volume
application temperatures up to 1290 °C
2-layer insulation concept with 35 mm microporous insulating board
Particularly high energy efficiency
Reversible kiln stand, handy and practical
Pressure spring-supported opening mechanism for the lid
Power control effected by silent, low-wear solid-state relays with an external cooling element

View other products in Rohde Kilns »

Specifications

Max Temp °C - 1320

Application Temp °C - 1290

Capacity (l) - 250L

Int Dimensions (mm) - 725 x 620 x 680

Ext Dimensions (mm) - 1200 x 945 x 1005

Output - 11.8 kW

Current - 51.3Amp

Weight - 195 kg

This kiln is available as single phase or 3-phase. In the UK the majority of homes have a single phase supply (the standard three wires: live, neutral and earth). 3-phase supplies (five wires) are usually only found in industrial or commercial settings, so please check which connection type you require before ordering. In either case this kiln will need to be connected by a qualified electrician.

CEE Plug & Cable Supply

The ECOTOP250S available either as a single or three phase kiln. A qualified electrian is required to wire it in. to Please check your supply before purchasing.

11.8kW/51.3A 230V single phase, 63 amp 3-pin CEE plug and cable.

CEE IP44 230 Volt 32 Amp Plug Blue

11.8kW/17A (per phase) 400V three phase, 16 amp 5-pin CEE plug and cable.

CEE IP44 3-Phase 400 Volt 32 Amp Plug Red

For costs on firing, see Rohde's website. Rohde say the calculations are accurate for any kW version of each model size

Controllers & App

The new European ST 310 Stafford controller uses its simple firing graph to easily see what stage your firing is in. The ST 310 is a standard issue with a Rohde kiln but you can upgrade to the ST 411 for more program spaces and segments.

Visit the Rohde website for more information on the ROHDEgraph app.

Standard ST310

ROHDE ST 310

32 programs with 2 segments
2 controlled heating ramps, 1 controlled soak period and 1 controlled cooling ramp

Upgrade ST411

ROHDE ST 411

32 programs with up to 32 segments each
1 additional switch output
1 controlled heating/cooling ramp + soak period per segment

Both Controllers

Current ROHDE controllers are optimised for operation with a PV system (ST 411 PV)
Soak times up to 99 hours 59 mins
Ramp rates from 1 to 999°C/h or “FULL”
USB port and Wi-Fi module for data logging via the ROHDEgraph and the ROHDE myKiln App / SolarReady (PV / photovoltaics)
ROHDE SolarReady configuration optional
Programs can be altered while firing
Program pause and advance function
Lockable keypad
Program start delay facility – up to 99 hours 59 mins
Recovery in the event of a power failure
Displays energy used
Setpoint display
Alarm buzzer
Temperature values can be displayed in °C or °F
ROHDE CPC 14 connector

Setpoint display
Alarm buzzer
Temperature values can be displayed in °C or °F
ROHDE CPC 14 connector

Delivery Details & Guarantee

Delivery times subject to availability
Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.

Our Palletised Delivery Guidance shows you what to expect upon delivery.

On arrival see how your Rohde Toploader is packed.

Guarantee

3 Year Manufacturers Warranty (not including elements).
