Rohde Ecotop 200S
Item: ECOTOP200S
Description
Efficient, safe and economical.

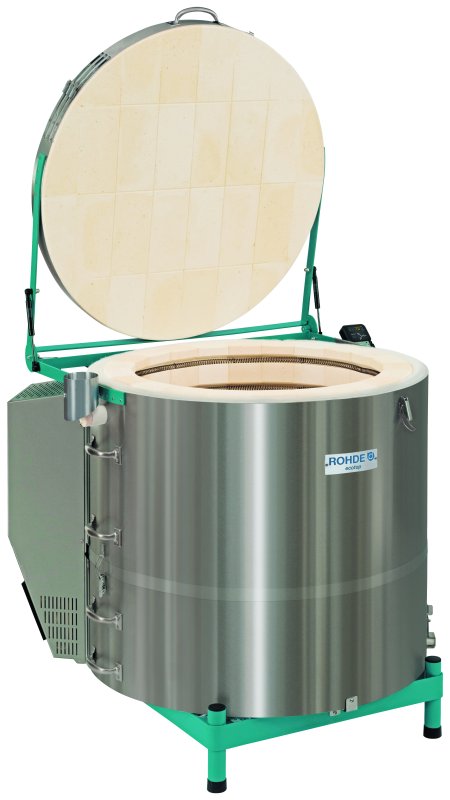

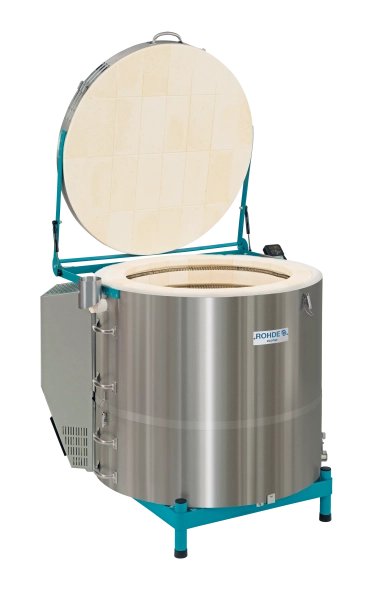

The Ecotop 200 S Toploader has a volume of 200 litres and is a kiln from the Ecotop series suitable for temperatures to 1320°C.
The future-oriented models from the Ecotop series are among the most recent developed kiln range of ROHDE. The Ecotop is currently one of the most economical kilns on the market and features a new and unique insulation concept that allows for very high energy efficiency.
The 2-layer insulation structure featuring a high-quality microporous 35 mm back insulation can be safely fired to stoneware temperatures.
Special features of the Ecotop series:
- 200 l volume
- application temperatures up to 1290 °C
- 2-layer insulation concept with 35 mm microporous insulating board
- Particularly high energy efficiency
- Reversible kiln stand, handy and practical
- Pressure spring-supported opening mechanism for the lid
- Power control effected by silent, low-wear solid-state relays with an external cooling element
Specifications
Specifications
Max Temp °C - 1320
Application Temp °C - 1290
Capacity (l) - 200L
Int Dimensions (mm) - ø610 x 680(h)
Ext Dimensions (mm) - W-1090 x D-920 x H-1005
Output - 10.3 kW
Current - 44.8Amp
Weight - 170kg
This kiln is available as single phase or 3-phase. In the UK the majority of homes have a single phase supply (the standard three wires: live, neutral and earth). 3-phase supplies (five wires) are usually only found in industrial or commercial settings, so please check which connection type you require before ordering. In either case this kiln will need to be connected by a qualified electrician.
CEE Plug & Cable Supply
The ECOTOP145S available either as a single or three phase kiln. A qualified electrian is required to wire it in. to Please check your supply before purchasing.
10.3kW/44.8A 230V single phase, 63 amp 3-pin CEE plug and cable.
10.3kW/14.9A (per phase) 400V three phase, 16 amp 5-pin CEE plug and cable.
Optional Shelf kit includes:
- 4 x Ø540mm Kiln Shelves
- 9 x 25mm props
- 9 x 50mm props
- 9 x 75mm props
- 9 x 100mm props
For costs on firing, see Rohde's website. Rohde say the calculations are accurate for any kW version of each model siz
Controllers & App
Controllers & App
The new European ST 310 Stafford controller uses its simple firing graph to easily see what stage your firing is in. The ST 310 is a standard issue with a Rohde kiln but you can upgrade to the ST 411 for more program spaces and segments.
Visit the Rohde website for more information on the ROHDEgraph app.
Standard ST310
- 32 programs with 2 segments
- 2 controlled heating ramps, 1 controlled soak period and 1 controlled cooling ramp
Upgrade ST411
- 32 programs with up to 32 segments each
- 1 additional switch output
- 1 controlled heating/cooling ramp + soak period per segment
Both Controllers
- Current ROHDE controllers are optimised for operation with a PV system (ST 411 PV)
- Soak times up to 99 hours 59 mins
- Ramp rates from 1 to 999°C/h or “FULL”
- USB port and Wi-Fi module for data logging via the ROHDEgraph and the ROHDE myKiln App / SolarReady (PV / photovoltaics)
- ROHDE SolarReady configuration optional
- Programs can be altered while firing
- Program pause and advance function
- Lockable keypad
- Program start delay facility – up to 99 hours 59 mins
- Recovery in the event of a power failure
- Displays energy used
- Setpoint display
- Alarm buzzer
- Temperature values can be displayed in °C or °F
- ROHDE CPC 14 connector
- Setpoint display
- Alarm buzzer
- Temperature values can be displayed in °C or °F
- ROHDE CPC 14 connector
Delivery Details & Guarantee
- Delivery times subject to availability
- Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
- Delivered directly from the supplier. If you order other items at the same time as your kiln, they will arrive separately.
- Delivery is an all day delivery, please contact us if you need a timed delivery window as there may be a charge.
Our Palletised Delivery Guidance shows you what to expect upon delivery.
On arrival see how your Rohde Toploader is packed.
Guarantee
- 3 Year Manufacturers Warranty (not including elements).
