Nabertherm Chamber Kiln N-E (Heated From 3 Sides)
Facebook Twitter Email Pinterest Telegram

Description

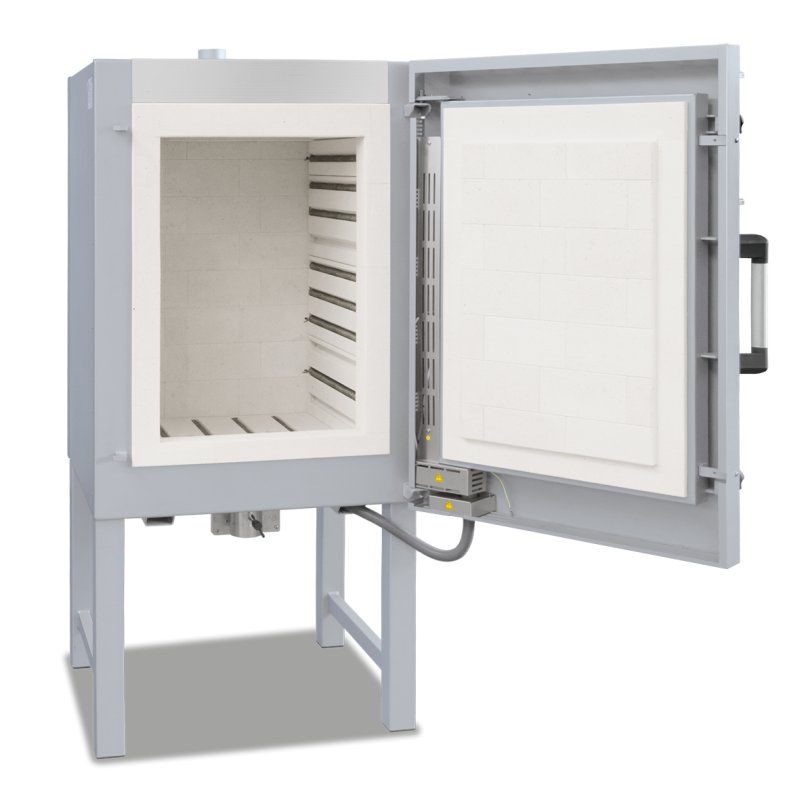

Designed as chamber kilns with wide-opening door these models can be easily and clearly loaded. The appealing design and attractive price are convincing arguments for this kiln series. The heating elements are protected in grooves.

The kilns can be used for ceramics and glass or porcelain painting or also for simple fusing works. The infinitely adjustable air inlet opening in the door and the exhaust air opening in the roof ensure good ventilation inside the kiln and reduce cooling times.

  • Heating elements protected in grooves
  • Heating from both sides
  • Designed as a tabletop model, base available as an accessory
  • Infinitely adjustable fresh air inlet
  • Scope of delivery includes an option for connecting an exhaust air pipe (80 mm diameter)
  • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used.
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
  • Freeware NTGraph for evaluation and documentation of firings using ExcelTM for WindowsTM on the PC
  • Freeware NTEdit for convenient program input via ExcelTM for WindowsTM on the PC
  • Optimized insulation construction for a perfect balance between the best possible energy consumption and short cycle times
  • Controller can be switched to “Solar Mode” to take advantage of electricity from PV systems with and without battery
  • MyNabertherm App for online monitoring of the firing on mobile devices for free download
  • Defined application within the constraints of the operating instructions

Also available in three phase supply, Nabertherm NE40E/R please contact for a quote.

SPECIFICATIONS

Model Tmax Inner dimensions in mm Volume in Outer dimensions4 in mm Connected load5 Electrical Weight in Furniture Set
  °C w d h L W D H1 kW connection kg cm
NE 140/L  1100 4502 580 5703 140 720 1130 1440 6 3-phase 280 Shelves x4 - 550x360x18, Props - 50mm x12 and 100mm x6
NE 140  1300 4502 580 5703 140 720 1130 1440 9 3-phase 280 Shelves x4 - 550x360x18, Props - 50mm x12 and 100mm x6
NE 210/L  1100 5002 580 7003 210 770 1130 1570 9 3-phase 320 Shelves x5 - 550x410x18, Props - 50mm x12 and 100mm x9
NE 210  1300 5002 580 7003 210 770 1130 1570 11 3-phase 320 Shelves x5 - 550x410x18, Props - 50mm x12 and 100mm x9
NE 280/L  1100 5202 580 8903 280 790 1130 1760 9 3-phase 400 Shelves x6 - 550x440x18, Props - 50mm x12 and 100mm x12
NE 280  1300 5202 580 8903 280 790 1130 1760 15 3-phase 400 Shelves x6 - 550x440x18, Props - 50mm x12 and 100mm x12

DELIVERY DETAILS & GUARANTEE

  • Delivery times subject to availability
  • Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
  • Delivery is an all day delivery, 9am-5pm, please contact us if you need a timed delivery window as there may be a charge.



36 Month Manufacturer's Guarantee :

Nabertherm provides for a guarantee on the furnace function with respect to standard industrial use as well as on spare parts for 36 months starting from the day of delivery. Wear and tear parts (including thermocouple and elements) or damaged parts due to improper use as well as damages due to interaction between furnace components and charge are excluded from the guarantee. The warranty period for repair and service jobs is 6 months.

CONTROLLER

CONTROLLER AC590

  • Modern design with intuitive touch screen
  • Program status display with estimated end time and date
  • Transparent, graphical display of temperature curves
  • Clear presentation of firing data
  • 40 freely adjustable segments
  • 50 programs can be stored
  • Cone-Firing Assistant "Conny" for easy start of your program
  • Precise Temperature Control
  • Easy Program Entry And Control
  • Wi-Fi Capable - Connection with the MyNabertherm app
  • Process information on USB
  • “Solar Mode” for utilizing electricity from photovoltaic systems with and without battery
  • Delayed start possible

For a controller demo, please click here.

For More information on the AC590 controller click here and videos click here.
