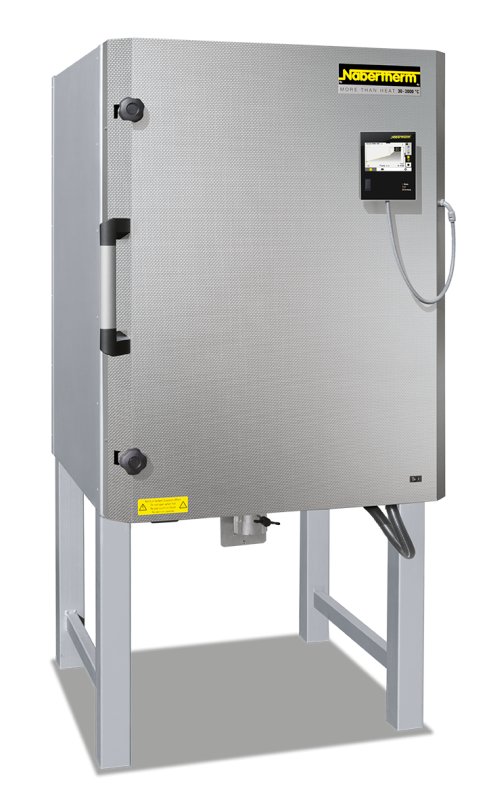

Nabertherm Chamber Kiln N-Series (Heated From 5 Sides)
Description
Welcome to the world of the professional firing. With their high-quality workmanship, attractive design, long service life and excellent temperature uniformity, our kilns in the N range set standards. Our chamber kilns from 100 to 2200 liters, heated from five sides, have a maximum firing temperature of 1300 °C (2372 °F) and are the creative companion for arts and crafts professionals.
These chamber kilns have proven their worth for many years, firing stoneware, porcelain and glass, even when tightly stacked and at high working temperatures. No matter whether you are working in your ceramic workshop, a studio, a hospital, a school or in the private sphere – our chamber kilns will meet your needs. They are a reliable partner even if you pack your kiln tightly and fire it frequently, guaranteeing excellent temperature uniformity.
- Heating elements on support tubes ensure free heat radiation
- Heating from five sides and a special arrangement of the heating elements ensure excellent temperature uniformity
- SiC shelves to protect the floor heating and provide a level setting surface
- Frame
- Door cover made from structured stainless steel
- Semi-motorized air inlet flap that closes automatically after the drying phase in the heating program for chamber kilns up to 300 liters
- Motor-driven exhaust air flap in the middle of the kiln roof for optimum ventilation of the kiln chamber for chamber kilns from 440 liters
SPECIFICATIONS
Model | Tmax | Inner dimensions in mm | Volume in | Outer dimensions2 in mm | Connected load3 | Electrical | Weight | Furniture Set | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
°C | w | d | h | l | W | D | H1 | kW | connection | kg | cm | |
N 100 | 1300 | 400 | 530 | 460 | 100 | 710 | 1130 | 1440 | 9 | 1-phase (no plug and lead) and 3-phase (16A Plug) | 280 | Shelves x4 - 490x350x17, Props - 50mm x9 and 100mm x6 |
N 150 | 1300 | 450 | 530 | 590 | 150 | 760 | 1130 | 1570 | 11 | 3-phase (16A Plug) | 320 | Shelves x4 - 490x400x17, Props - 50mm x12 and 100mm x9 |
N 200 | 1300 | 470 | 530 | 780 | 200 | 790 | 1130 | 1760 | 15 | 3-phase (32A Plug) | 380 | Shelves x5 - 490x420x17, Props - 50mm x15 and 100mm x15 |
N 300 | 1300 | 550 | 700 | 780 | 300 | 870 | 1300 | 1760 | 20 | 3-phase (32A Plug) | 450 | Shelves x10 - 500x320x18, Props - 50mm x36 and 100mm x42 |
N 440 | 1300 | 600 | 750 | 1000 | 440 | 1000 | 1410 | 1830 | 30 | 3-phase (No lead and plug) | 820 | Shelves x10 - 550x360x18, Props - 50mm x18 and 100mm x60 |
N 660 | 1300 | 600 | 1100 | 1000 | 660 | 1000 | 1750 | 1830 | 40 | 3-phase (No lead and plug) | 950 | Shelves x10 - 550x500x18, Props - 50mm x18 and 100mm x60 |
1Base included 2External dimensions vary when furnace is equipped with additional equipment. Dimensions on request 3The connected load refers to the standard furnace and may increase for a furnace with additional equipment. For furnaces with connection options for multi-range voltages, the connected load applies to the highest permissible connected voltage. |
DELIVERY DETAILS & GUARANTEE
- Delivery times subject to availability
- Delivery is to your driveway only and does not include installation. Please consider that you may need help to situate the kiln.
- Delivery is an all day delivery, 9am-5pm, please contact us if you need a timed delivery window as there may be a charge.
36 Month Manufacturer's Guarantee :
Nabertherm provides for a guarantee on the furnace function with respect to standard industrial use as well as on spare parts for 36 months starting from the day of delivery. Wear and tear parts (including thermocouple and elements) or damaged parts due to improper use as well as damages due to interaction between furnace components and charge are excluded from the guarantee. The warranty period for repair and service jobs is 6 months.
CONTROLLER
CONTROLLER AC590
- Modern design with intuitive touch screen
- Program status display with estimated end time and date
- Transparent, graphical display of temperature curves
- Clear presentation of firing data
- 40 freely adjustable segments
- 50 programs can be stored
- Cone-Firing Assistant "Conny" for easy start of your program
- Precise Temperature Control
- Easy Program Entry And Control
- Wi-Fi Capable - Connection with the MyNabertherm app
- Process information on USB
- “Solar Mode” for utilizing electricity from photovoltaic systems with and without battery
- Delayed start possible
For a controller demo, please click here.
For More information on the AC590 controller click here and videos click here.
