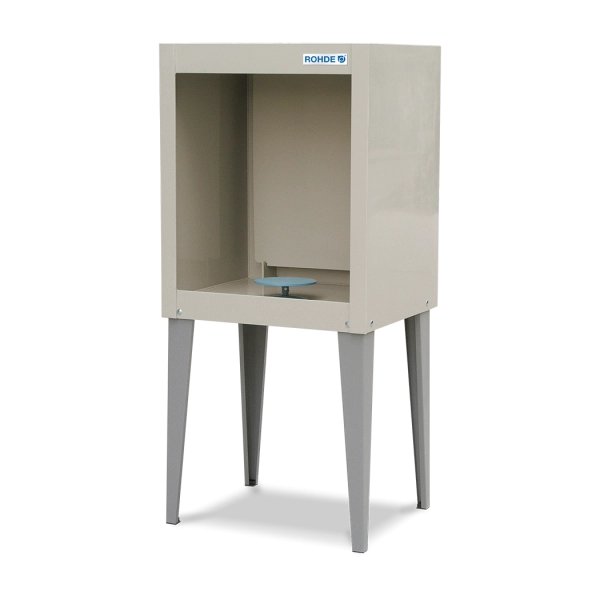

Rohde Spray Booth SK66

Product Description

The ROHDE Spray Booth SK 66 has been specially designed for applications in the ceramic manufacturing process. It prevents fine glaze and colour particles from escaping into the air and guarantees dust-free and safe working in the entire workshop.

The SK 66 is outstanding in its sturdy and functional assembly. The corrosion-free booth made of shockproof plastic material ensures the particularly silent, smooth and high-performance operation of this unit.

The ROHDE filter system is integrated into the exhaust device and can be easily cleaned or changed without using tools and prevents toxic colour and glaze particles from escaping into the air. The SK 66 guarantees high safety, excellent ergonomics, low noise levels at high performance level and can be easily accessed for cleaning.

Special features of the SK 66:



• Booth made from 8 mm shockproof polypropylene plastics, no corrosion









• Filter integrated in baffle wall, easy to remove and wash









• Easy clean-up of machine









• Vacuum fan, silent and powerful









Optional accessories



• †Piece for reduction, diameter 150 mm









• Turntable (banding wheels)









†

Specifications:

Model:†SK66

Usable Dimensions:†W-670 x D-520 x H-750 mm

External Dimensions:†W-790 x D-790 x H-1700 mm

Weight: 42kg

230v

330W

Fan:†50Hz

Volume Flow:†1540 m³/h

PLEASE NOTE: Spray booth does not include banding wheel
