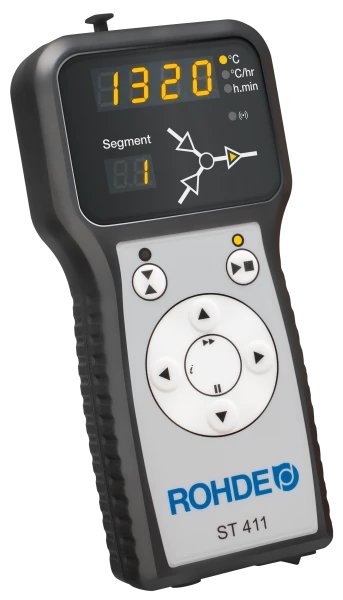

Rohde Controller ST411

Clear and powerful control unit with flexible programming for use in ceramics, schools and laboratories. The controller has a switching output (event) for controlling supply or exhaust air flaps. ROHDE myKiln App compatible and SolarReady (PV / photovoltaics).

• Single-zone controller
• 32 programs with up to 32 segments each
• 1 controlled heating/cooling ramp + soak period per segment
• Current ROHDE controllers are optimised for operation with a PV system (ST 411 PV)
• 1 additional switch output
• Soak times up to 99 hours 59 mins
• Ramp rates from 1 to 999°C/h or “FULL”
• USB port and Wi-Fi module for data logging via the ROHDEgraph and the ROHDE myKiln App / SolarReady (PV / photovoltaics)
• ROHDE SolarReady configuration optional
• Programs can be altered while firing
• Program pause and advance function
• Lockable keypad
• Program start delay facility – up to 99 hours 59 mins
• Recovery in the event of a power failure
• Displays energy used
• Setpoint display
• Alarm buzzer
• Temperature values can be displayed in °C or °F
• ROHDE CPC 14 connector

All ROHDE control units have a standardised plug connection (CPC 14 plug), as have Rohde kilns since 1994.

The plug connection is easily accessible on the kiln and the controller is detachable. You can replace the control unit yourself. This means that every Rohde kiln can be upgraded to a current control unit.

With a PV-optimised controller, you can use solar power for any ROHDE kiln built from 1994 onwards.

The ROHDE ST 411 controller can be switched between conventional firing and SolarReady mode.
