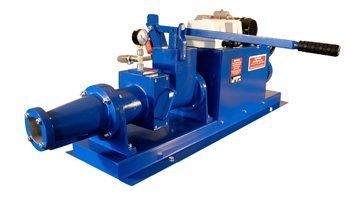

Gladstone 2 Outlet De-Airing Pugmill G48

The G48 is a 70 mm out let de-airing pugmill. This machine can be offered in range of specifications and is ideal for the small studio or educational use as it only takes 7Kgs of clay to fill the machine up.

The standard machine incorporates Aluminium barrels and nose cone with Nylatron blades. The auger is powered by an in line helical drive motor and gearbox. The pugmill is supplied complete with a high volume vacuum pump.

The G48 has externally removable shredder plates for easy cleaning, making it one of the most user friendly machines available. The pugmill can be supplied with various options including die plates for coil extrusion and tile nose cone and dies for extruding tiles.

Specifications

Supply: 13Amp plug in supply
Delivery Weight:    65kg
Vacuum pump:    High volume oil immersed
Drive Motor:    0.37Kw (0.5 Hp) reduction drive gearbox direct drive 230/ 400v
Output:    Approximately 220 Kg per hour
Dimensions:    1260mm long x 310mm wide x 470mm high
Construction:    Cast Aluminium 100mm barrel with 50mm extrusion , Split body to facilitate easy cleaning
Finish:    Durable powder coated finish
