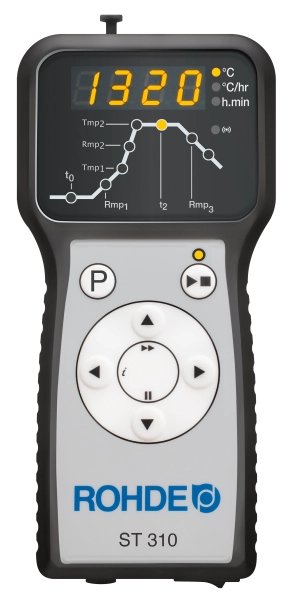

Rohde Controller ST310

Intuitive controller for use in workshops, schools and hobby rooms: ROHDE myKiln App compatible and SolarReady (PV / photovoltaics).

• 32 programs with 2 segments
• Single-zone controller
• 2 controlled heating ramps, 1 controlled soak period and 1 controlled cooling ramp
• Current ROHDE controllers are optimised for operation with a PV system (ST 310 PV)
• Soak times up to 99 hours 59 mins
• Ramp rates from 1 to 999°C/h or “FULL”
• USB port and Wi-Fi module for data logging via the ROHDEgraph and the ROHDE myKiln App / SolarReady (PV / photovoltaics)
• ROHDE SolarReady configuration optional
• Ideal for ceramic applications
• Programs can be altered while firing
• Program pause and advance function
• Lockable keypad
• Program start delay facility – up to 99 hours 59 mins
• Recovery in the event of a power failure
• Displays energy used
• Setpoint display
• Alarm buzzer
• Temperature values can be displayed in °C or °F
• ROHDE CPC 14 connector

All ROHDE control units have a standardised plug connection (CPC 14 plug), as have Rohde kilns since 1994.

The plug connection is easily accessible on the kiln and the controller is detachable. You can replace the control unit yourself. This means that every Rohde kiln can be upgraded to a current control unit.

With a PV-optimised controller, you can use solar power for any ROHDE kiln built from 1994 onwards.

The ROHDE ST 310 controller can be switched between conventional firing and SolarReady mode.
